70 series Angular Contact Ball Bearings

Single row angular contact ball bearing can only bear axial load in one direction. When bearing radial load, it will cause additional axial force, and can only limit axial displacement of shaft or shell in one direction. The contact angle of angular contact ball bearing is 40 degrees, so it can bear large axial load. The angular contact ball bearing is a non separating design, and the shoulders on both sides of the inner and outer rings are different. In order to improve the load capacity of the bearing, the shoulder on one side will be processed lower, so that the bearing can be installed into more steel balls.

Single row angular contact ball bearings are part of the group of radial ball bearings. These self-retaining units have solid outer and inner rings. The rolling elements are guided by cages made from polyamide, sheet steel, or brass. The bearing rings are designed with one high shoulder and one low shoulder.

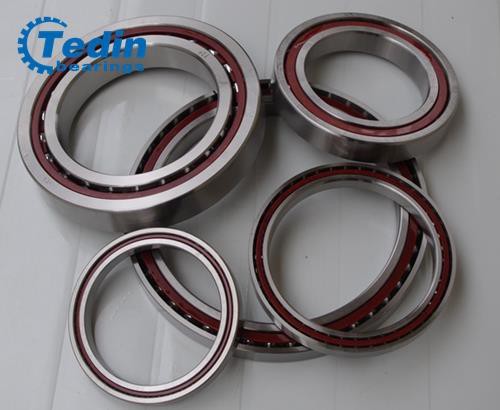

70 series Angular Contact Ball Bearings

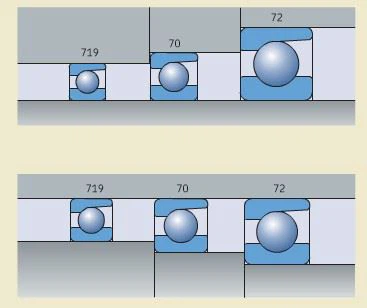

As showed on the above structure:

719 series is the ultra-light series among angular contact ball bearings;

70 series is the light-series among angular contact ball bearings;

72 series is the strengthening series among angular contact ball bearings;

Application:

According to different working conditions, it can be combined in many ways to obtain different bearing capacity of radial and axial load, and meet the requirements of high speed, diameter and axial high stiffness. Therefore, it is widely used in the spindle of precision machine tools.

719 or 70 series bearings should be selected when the rotating speed is high or the radial installation space is small; for heavy load and relatively low speed, 72 series bearings are more suitable.

Compensation of Angular Misalignments

The angular adjustment facility of the bearings is very limited. Single row angular contact ball bearings are of limited suitability for compensation of misalignments. The admissible misalignment between inner and outer ring depends on the bearing size, the internal bearing design, the clearance fit, and the acting of forces and moments. Misalignments not only lead to higher temperatures, but also to a reduction in the bearing rating life.

Our services:
1.Strict control in produce for high quality as a manufacturer
2.Competitive price with prompt delivery
3.OEM manufacturing supplied (Including clients' own brand)
4.Suitable packing according to customer's requirements

5.Large quantity in stock:7022AC/P4, 7024AC/P4, 7030AC/P4, 7034AC/P4, 7036AC/P4, 7038AC/P4, 7040AC/P4, 7044AC/P4, 7048AC/P4, etc.

70 series angular contact ball bearing catalogue:

Designation	Basic Sized						Abutment and fillet dimensions					Basic load ratings		Limit	Speed	weight
Design	inner ring	outer ring	width	Chamfer			da	Da	Db	ra	rb		static
Design	inner ring	outer ring	width	Chamfer			da	Da	Db	ra	rb	Cr	Cor	Grease	Oil
Current Code	d	D	B	r1.2	r3.4	a	min	max	max	max	max	Cr	Cor	Grease	Oil
—	mm						mm					KN		r/min		kg
7030B	150	225	35	2.1	1.1	96	162	213	118	2	1	119	132	1900	2800	4.7
7032B	160	240	38	2.1	1.1	103	172	228	233	2	1	143	166	1800	2600	5.75
7034	170	260	42	2.1	1.1					2	1					7.87
7036B	180	280	46	2.1	1.1	119	192	268	273	2	1	195	240	1600	2200	10
7038B	190	290	46	2.1	1.1	124	202	278	283	2	1	199	255	1600	2200	10.5
7040C	200	310	51	2.1	1.1	85	211	299	304	2	1	289	471	2800	4600	14
7040AC	200	310	51	2.1	1.1	85	211	299	304	2	1	273	447	2600	4300	14
7044B	220	340	56	3	1.1	145	234	326	333	2.5	1	255	345	1300	1800	18
7048B	240	360	56	3	1.1	154	254	346	353	2.5	1	260	375	1200	1700	19
7052C	260	400	65	4	1.5		278	382		3	1.5	346	490	2201	3300	28.5
7052AC	260	400	65	4	1.5		278	382		3	1.5	326	465	2101	3100	28.5
7056C	280	420	65	4	1.5	134	298	402	411	3	1.5	351	550	1000	1500	30
7056AC	280	420	65	4	1.5	179	298	402	411	3	1.5	319	500	900	1400	30
7056B	280	420	65	4	1.5	179	298	402	411	3	1.5	319	500	900	1400	30
7060C	300	460	74	4	1.5	147	318	442	451	3	1.5	423	695	950	1400	42.5
7060AC	300	460	74	4	1.5	147	318	442	451	3	1.5	423	695	950	1400	42.5
7060B	300	460	74	4	1.5	196	318	442	451	3	1.5	377	630	900	1300	42.5
7064AC	320	480	74	4	1.5	153	338	462	471	3	1.5	436	735	900	1300	44.5
7064B	320	480	74	4	1.5	205	338	462	471	3	1.5	390	670	850	1200	44.5
7068AC	340	520	82	5	2	165	362	498	510	4	2	507	900	850	1200	61.5
7068B	340	520	82	5	2	223	362	498	510	4	2	449	815	800	1100	61.5
7072AC	360	540	82	5	2	171	382	518	530	4	2	520	950	850	1200	62.5
7072B	360	540	82	5	2	230	382	518	530	4	2	462	850	800	1100	62.5
70876AC	380	480	31	2	1	142	390	470	474	2	1	190	345	850	1200	13.5
7076AC	380	560	82	5	2	177	402	538	550	4	2	507	950	800	1100	65.5
7076B	380	560	82	5	2	238	402	538	550	4	2	468	880	750	1000	65.5
7080C	400	600	90	5	2	189	422	578	590	4	2	585	1120	750	1000	85
7080AC	400	600	90	5	2	189	422	578	590	4	2	605	1180	750	1000	85
7080B	400	600	90	5	2	255	422	578	590	4	2	527	1020	700	950	85
7084AC	420	620	90	5	2	195	442	598	610	4	2	605	1180	750	1000	88.5
7084B	420	620	90	5	2	263	442	598	610	4	2	540	1060	670	900	88.5
7088AC	440	650	94	6	3	204	468	622	636	5	2.5	650	1320	700	950	100
7088B	440	650	94	6	3	276	468	622	636	5	2.5	572	1180	630	850	100
70892AC	460	580	37	2.1	1	169	472	568	574	2	1	265	560	750	1000	24.5
7092AC	460	680	100	6	3	215	488	652	666	5	2.5	689	1460	670	900	120
7092B	460	680	100	6	3	289	488	652	666	5	2.5	618	1290	600	800	120
7096AC	480	700	100	6	3	220	508	672	686	5	2.5	702	1530	630	850	125
7096B	480	700	100	6	3	298	508	672	686	5	2.5	624	1340	560	750	125
708/500AC	500	620	37	2.1	1.1	180	512	608	613	2	1	276	620	670	900	27
70/500AC	500	720	100	6	3	226	528	692	706	5	2.5	715	1600	600	800	130
70/500B	500	720	100	6	3	306	528	692	706	5	2.5	637	1400	560	750	130
