RE35020 Crossed Roller Bearing

RE35020 Crossed Roller Bearing
Details:
The RE35020 crossed roller bearing supports stable and efficient operation in compact motion systems. It is designed to improve overall system reliability in applications where continuous accuracy and smooth movement are essential.
Send Inquiry
Download
Description
Technical Parameters



RE35020 Crossed Roller Bearing Overview

The RE35020 crossed roller bearing is engineered for smooth motion and dependable performance in space-limited designs. Its crossed roller arrangement supports combined loads with excellent stability, making it well suited for robotics, rotary tables, CNC equipment, and industrial automation systems.

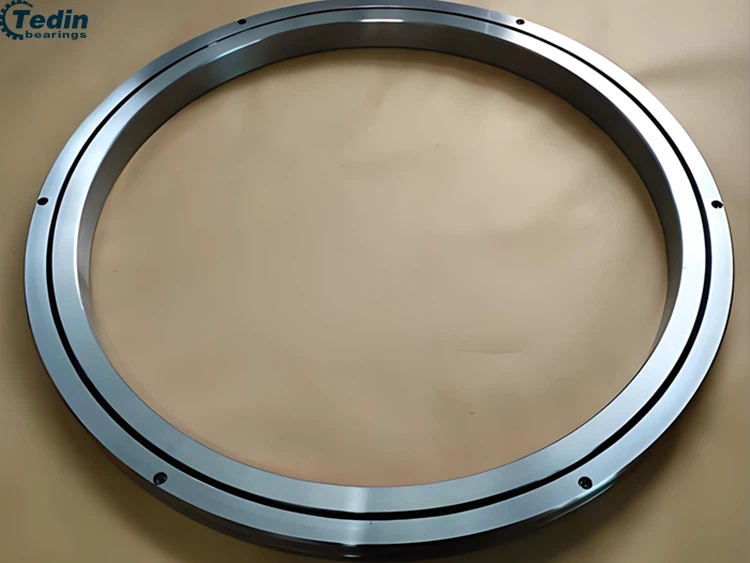

RE35020 Crossed Roller Bearing - Tedin bearing

Technical Parameters (RE35020)

Inner Diameter (d)350 mm
Outer Diameter (D)400 mm
Roller Pitch Diameter (Dpw)376.6 mm
Width (B)20 mm
Chamfer (rmin)2.5
Shoulder Size (ds)363
Shoulder Size (Dh)383
Basic  Load Rating (Radial) Cr54.1kN
Basic  Load Rating (Radial) Cor143 kN
weight 3.9
Rotation Accuracy GradeP5 / P4 / P2 available
Check More Type of RE Series Crossed Roller Bearing

Applications of Crossed Roller Bearings

Industrial Robotics

Rotary Indexing Tables

Semiconductor Manufacturing Equipment

Precision Conveying Equipment

Engineering & Manufacturing Strength

Precision Machining Workshop

The workshop handles customized bearing parts with flexible machining based on specific drawings and requirements. It is mainly focused on keeping tight dimensional control while adapting to different production needs in real projects.

RE35020 Crossed Roller Bearing - Tedin bearing
RE35020 Crossed Roller Bearing - Tedin bearing

Integrated Production Facility

The factory has been producing precision bearings for many years and continues to work with customers from different industries worldwide. Its production process is stable and supports consistent delivery for ongoing industrial supply.

Product FAQ Information




How is the RE35020 prepared before shipping?

+

-

Each bearing is cleaned, coated with anti-corrosion oil, and sealed in protective packaging to reduce the risk of moisture or contamination during transport.

Can the RE35020 be supplied in higher accuracy grades?

+

-

Yes. It can be manufactured in precision grades such as P4 or P2 for applications that require tighter rotational control.

Is the RE35020 suitable for direct-drive systems?

+

-

Yes. Its stable rotation characteristics and compact structure make it suitable for torque motors and direct-drive rotary tables.

What is the recommended storage condition before installation?

+

-

It should be stored in a dry, clean environment without vibration. Avoid humidity and rapid temperature changes to prevent condensation.

Does the RE35020 require special installation tools?

+

-

No special tools are required, but proper alignment and even mounting pressure are important to maintain smooth operation and accuracy.
