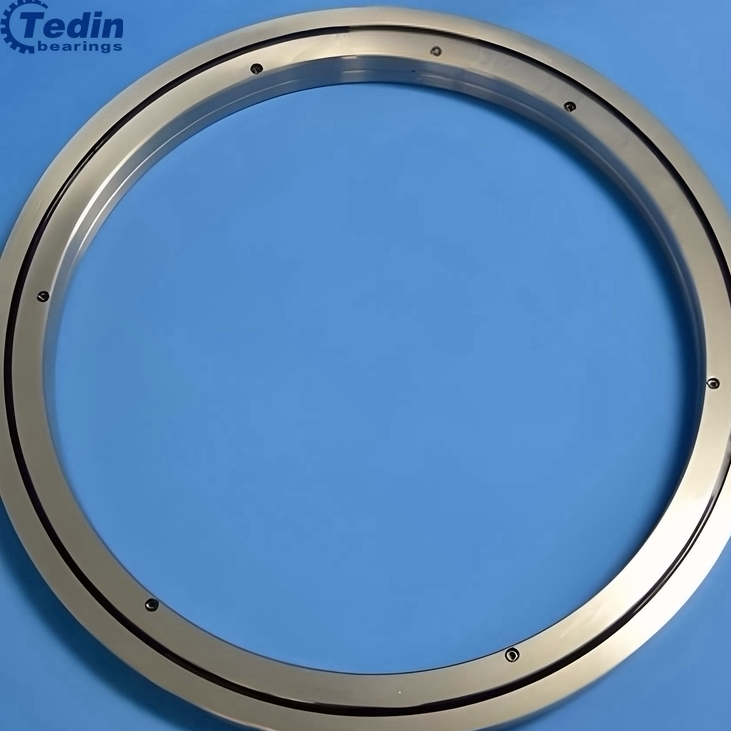

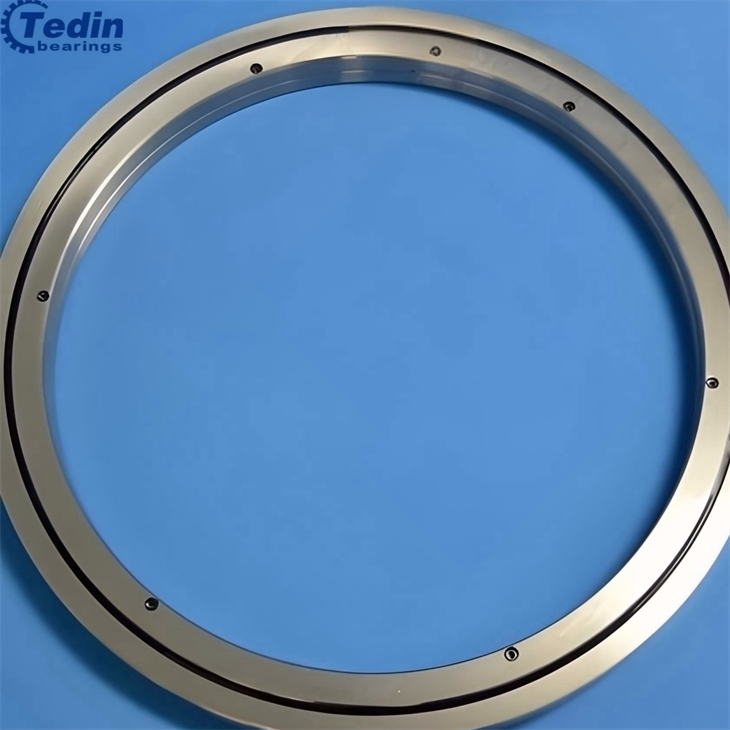

The RE24025 crossed roller bearing is designed with a compact crossed roller arrangement that enables smooth rotational movement and stable load distribution. It is suitable for applications requiring reliable positioning in limited installation spaces.
Why Choose This Bearing?
It delivers consistent motion behavior in light to medium-duty systems and helps maintain stable operation in equipment where space and efficiency are critical. Its performance supports improved mechanical reliability in practical use conditions.
Technical Specifications – RE24025
| Inner Diameter (d) | 240 mm |
| Outer Diameter (D) | 300 mm |
| Roller Pitch Diameter (Dpw) | 272.5 mm |
| Width | 25 mm |
| Chamfer (rmin) | 2.5 |
| Shoulder Size (ds) | 256 |
| Shoulder Size (Dh) | 281 |
| Basic Load Rating (Radial) Cr | 68.3 kN |
| Basic Load Rating (Radial) Cor | 145 kN |
| Weight | 4.5 kg |
Application Areas
Inspection & Shipping Preparation
From final inspection to protective packaging, each bearing is prepared for safe transportation. Careful handling and secure packing help maintain product condition throughout domestic and international delivery.
RE24025 Technical FAQ
How should the RE24025 be protected from contamination?
Dust, metal particles, and other contaminants can affect smooth operation and increase friction. Clean assembly conditions and suitable sealing methods help keep the bearing in good working condition.
Can the RE24025 operate at high rotational speeds?
The bearing should operate within its recommended speed range. Excessive speed may increase heat generation and affect lubrication performance, especially under continuous operation.
Can the RE24025 operate at high rotational speeds?
The bearing should operate within its recommended speed range. Excessive speed may increase heat generation and affect lubrication performance, especially under continuous operation.
Is additional preload necessary for this bearing?
In most applications, the standard internal setting is sufficient. Extra preload should only be considered when higher system rigidity is required and operating conditions have been carefully evaluated.
