Precision Bearing Solution for Compact Motion Systems

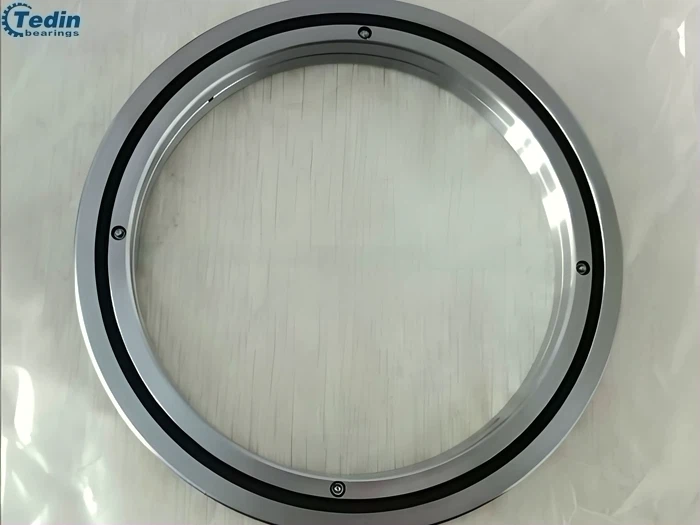

The RE25040 crossed roller bearing is designed for compact mechanical systems that require stable motion control and efficient use of installation space. It integrates radial, axial, and moment load handling within a single structure, making it suitable for precision motion support in confined assemblies.
Its compact design and load-bearing capability make it suitable for systems that require controlled movement and structural stability under complex operating conditions.
Key Performance Features
Multi-Directional Load Design
Crossed roller configuration enables stable handling of radial, axial, and moment loads within a compact bearing structure.
Space-Efficient Construction
Optimized internal layout reduces installation space while maintaining functional performance in compact equipment designs.
Stable Rotational Behavior
Precision raceway finishing supports smooth movement and consistent positioning accuracy during operation.
Structural Rigidity Support
Internal geometry is designed to maintain stiffness under load, reducing deformation in precision motion systems.
Technical Parameters
| Bearing Model | RE25040 |
| Inner Diameter (d) | 250 mm |
| Outer Diameter (D) | 355 mm |
| Roller Pitch Diameter (Dpw) | 300.7 |
| Height (B) | 40 mm |
| Chamfer (Rmin) | 2.5 |
| Shoulder Size (ds) | 275 |
| Shoulder Size (Dh) | 326 |
| Basic Load Rating (Radial) Cr | 195 kN |
| Basic Load Rating (Radial) Cor | 348 kN |
| Weight | 14.8 kg |
Check More Type of RE Series Crossed Roller Bearing
Applications
Industrial Robots
Packaging Machinery
Medical Imaging Equipment
Precision Machine Tools
Material Handling Equipment
Radar & Antenna Systems
Controlled Bearing Production Workflow
Controlled Manufacturing Structure
Production activities are organized through structured manufacturing steps focused on precision bearing components. Each stage follows defined engineering requirements to maintain consistent dimensional stability and reliable mechanical performance.
Component Processing Flow Control
The manufacturing process is arranged in component-level flow, ensuring each part is processed with controlled accuracy. This approach supports stable assembly conditions and repeatable production quality across different specifications.
Mechanical Stability Fabrication
Fabrication work is oriented toward maintaining mechanical stability in high-load applications. Production control focuses on ensuring smooth operational behavior and consistent structural performance in precision bearing systems.
Industrial Capability & Supply Network
Industrial Capability
Our company continues to strengthen its industrial capability through long-term development and accumulated engineering experience. This ongoing improvement supports stable manufacturing coordination and consistent operational performance across different production demands.
Supply Partnerships
We maintain long-term cooperation with industrial partners including equipment manufacturers and distributors across different markets. These stable partnerships help ensure coordinated supply support and reliable project execution for global customers.
RE25040 Crossed Roller Bearing - FAQ
What accuracy levels are available, and how should engineers select them?
+
-
RE25040 crossed roller bearings are available in standard and high-precision grades. The appropriate accuracy level depends on positioning requirements, rotational accuracy, operating speed, and equipment performance. High-precision grades are typically recommended for robotics, rotary tables, medical equipment, and other precision motion systems.
What preload options should be considered during selection?
+
-
Preload selection depends on system stiffness requirements and operating conditions. Light preload reduces friction and is suitable for higher-speed applications, while medium preload improves rigidity for precision positioning systems. Engineers should balance stiffness, torque, and service life when specifying preload.
What should I check before installation?
+
-
Verify shaft and housing tolerances, clean all mounting surfaces, and ensure no burrs or distortions are present. Proper preparation significantly affects bearing performance.
What happens if the mounting bolts are over-tightened?
+
-
Over-tightening can distort the bearing rings, leading to increased torque, uneven rotation, or reduced accuracy. Always follow recommended torque values.
How often should maintenance be performed?
+
-
Maintenance intervals depend on operating conditions such as load, speed, and environment. In general, periodic lubrication and inspection every few months is recommended for stable operation.
