Product Overview Note

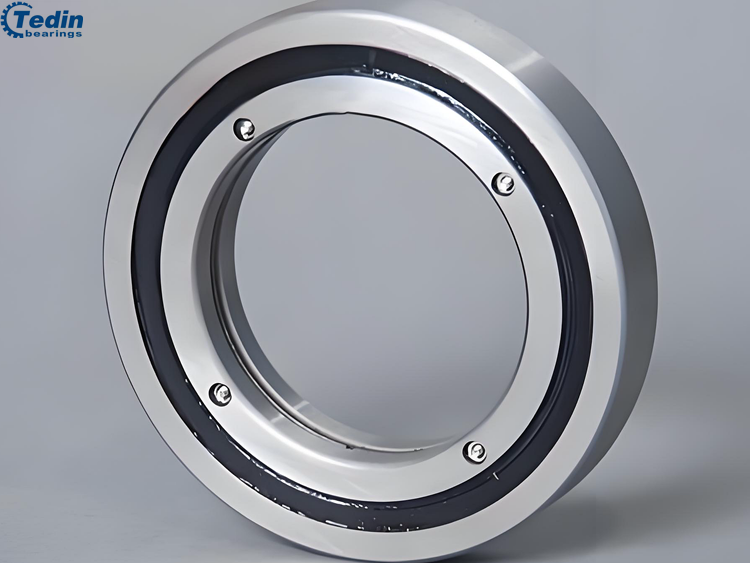

The RE9016 is a standard crossed roller bearing used in basic mechanical assemblies where simple rotary support is required. It is intended for general industrial equipment that operates under conventional mechanical conditions without specialized motion requirements.
Technical Parameters
| Inner Diameter (d) | 90 mm |
| Outer Diameter (D) | 130 mm |
| Roller Pitch Diameter (Dpw) | 112 |
| Width (B) | 16 mm |
| Chamfer (rmin) | 1 |
| Shoulder Size (ds) | 98 |
| Shoulder Size (Dh) | 118 |
| Basic Load Rating (Radial) Cr | 31.4 kN |
| Basic Load Rating (Radial) Cor | 45.3 kN |
| weight | 0.75 kg |
| Accuracy Grades Available | P5 / P4 / P2 |
Check More Type of RE Series Crossed Roller Bearing
This model is typically applied in general-purpose machinery where basic rotational support is needed for non-critical motion sections. It is commonly selected for equipment that prioritizes functional reliability over precision-driven performance requirements.
The bearing provides stable support for rotating parts in routine operating conditions, helping maintain consistent mechanical contact in systems with moderate load demand. It is suitable for continuous use in standard industrial environments where operating conditions remain stable.
Application & Usage Questions
Is the RE9016 suitable for controlled or clean operating environments?
+
-
The RE9016 can be used in controlled environments when properly protected within the overall machine design, depending on the level of sealing and system enclosure.
Does the RE9016 require a run-in period after installation?
+
-
In most standard applications, the bearing operates normally after correct installation without requiring a specific break-in process.
What determines lubrication intervals for the RE9016?
+
-
Lubrication frequency depends on operating conditions such as load level, speed, and environmental exposure rather than a fixed maintenance schedule.
Is customized configuration available for the RE9016?
+
-
Yes. Certain design adjustments such as mounting features or preload settings can be provided based on application requirements.
Can the RE9016 handle intermittent or frequent operation cycles?
+
-
It can operate under intermittent working conditions when properly installed and lubricated within standard mechanical limits.
