Product Introduction

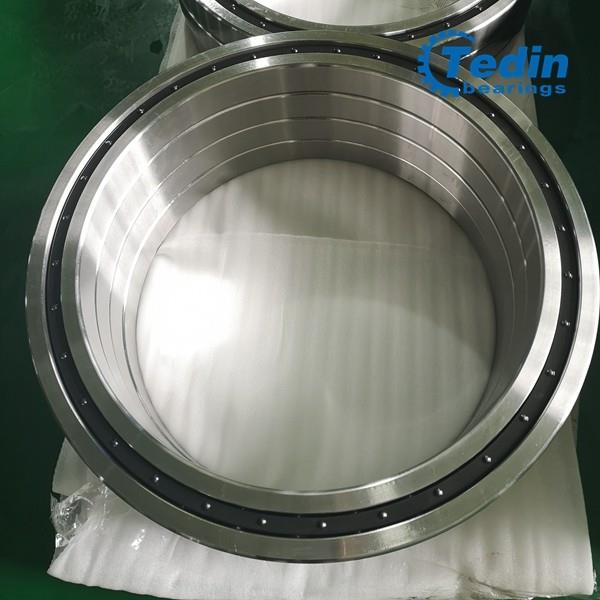

Deep Groove Ball Bearing is also known as single-row radial ball bearing. It is one of the most widely used rolling bearings. Its characteristics are small friction resistance and high speed. The product can be used to bear radial load or radial and axial simultaneous action of the combined load on the parts, but also can be used to bear axial load on the parts, such as small power motors, cars and tractors gearboxes, machine tool gear box, general machines, tools, and so on.
Features
This Deep Groove Ball Bearing is mainly subjected to radial loads and can also withstand radial loads and axial loads. When it is only subjected to radial loads, the contact angle is zero. When the deep groove ball bearing has a large radial clearance, it has the performance of an angular contact bearing and can withstand a large axial load.
More Options: 61800 series bearings can be protected by either metal shields (ZZ) or rubber seals (2RS). Metal shields offer dust and temperature resistance and do not affect the speed rating of the bearings. To protect bearings from contamination and leakage, rubber seals are a better choice.
Features:
1. Each ferrule of the structure deep groove ball bearing has a continuous groove type raceway with a cross section of approximately one third of the circumference of the ball. It is mainly used to withstand radial loads and also withstand certain axial loads.
2. When the radial clearance of the bearing increases, it has the property of angular contact ball bearing and can bear the axial load alternating in two directions;
3. the friction is small, the rotation speed is high;
4. The structure is simple, the manufacturing cost is low, high accuracy.
Application:
Widely used in automobiles, home appliances, machine tools, motors, pumps, agricultural machinery, textile machinery and many other fields.
Main Products
Precision grade: P5, P4, SP, P42
Types: Open, RS, 2RS, Z, 2Z , RZ, 2RZ, N, NR
Common Options:
2RS-- Two Rubber Seals
C0-- Normal Internal Clearance
C3-- Greater than normal clearance
M-- Brass Cage
NR-- Snap Ring
P53-- Abec 5 with C3 clearance
ZZ-- Two Metal Shields
Type Number | Dimensions | Basic Load Rating | Weight | Installation Size | Limiting Speed | |||||||
mm | kN | kg | mm | r/min | ||||||||
d | D | B | rmin | Cr | Cor | damin | Damax | ramax | Grease | Oil | ||
61820 | 100 | 125 | 13 | 1 | 19.6 | 21.2 | 0.31 | 105 | 120 | 1 | 4800 | 5700 |
61822 | 110 | 140 | 16 | 1 | 28.1 | 30.7 | 0.61 | 115 | 135 | 1 | 4300 | 5100 |
61824 | 120 | 150 | 16 | 1 | 29 | 33 | 0.66 | 125 | 145 | 1 | 4000 | 4700 |
61826 | 130 | 165 | 18 | 1.1 | 36.9 | 41.2 | 0.94 | 136.5 | 158.5 | 1 | 3600 | 4300 |
61828 | 140 | 175 | 18 | 1.1 | 38.2 | 44.4 | 1 | 146.5 | 168.5 | 1 | 3400 | 4000 |
61830 | 150 | 190 | 20 | 1.1 | 49.1 | 58.5 | 1.15 | 156.6 | 183.5 | 1 | 3000 | 3600 |
61832 | 160 | 200 | 20 | 1.1 | 48.5 | 61 | 1.23 | 166.5 | 193.5 | 1 | 2800 | 3400 |
61834 | 170 | 215 | 22 | 1.1 | 61.5 | 78 | 1.9 | 176.5 | 208.5 | 1 | 2600 | 3200 |
61836 | 180 | 225 | 22 | 1.1 | 62.3 | 78.5 | 1.72 | 186.5 | 218.5 | 1 | 2400 | 3000 |
61838 | 190 | 240 | 24 | 1.5 | 75.1 | 93.5 | 2.53 | 198 | 232 | 1.5 | 2200 | 2800 |
61840 | 200 | 250 | 24 | 1.5 | 74 | 98 | 2.67 | 208 | 242 | 1.5 | 2200 | 2800 |
61844 | 220 | 270 | 24 | 1.5 | 76.5 | 97.8 | 2.9 | 228 | 262 | 1.5 | 1900 | 2400 |
61848 | 240 | 300 | 28 | 2 | 83.5 | 108 | 4.48 | 249 | 291 | 2 | 1800 | 2200 |
61852 | 260 | 320 | 28 | 2 | 101 | 148 | 4.84 | 269 | 311 | 2 | 1700 | 2000 |
61856 | 280 | 350 | 33 | 2 | 133 | 191 | 7.2 | 289 | 341 | 2 | 1600 | 1900 |
61860 | 300 | 380 | 38 | 2.1 | 166 | 233 | 10.3 | 311 | 369 | 2 | 1400 | 1700 |
61864 | 320 | 400 | 38 | 2.1 | 168 | 244 | 10.8 | 331 | 389 | 2 | 1300 | 1600 |
61868 | 340 | 420 | 38 | 2.1 | 175 | 265 | 11.5 | 351 | 409 | 2 | 1200 | 1500 |
61872 | 360 | 440 | 38 | 2.1 | 192 | 290 | 11.8 | 371 | 429 | 2 | 1100 | 1400 |
61876 | 380 | 480 | 46 | 2.1 | 238 | 375 | 19.5 | 391 | 469 | 2 | 1000 | 1300 |
61880 | 400 | 500 | 46 | 2.1 | 241 | 390 | 20.5 | 411 | 489 | 2 | 1000 | 1300 |
61884 | 420 | 520 | 46 | 2.1 | 245 | 410 | 21.4 | 431 | 509 | 2 | 950 | 1200 |
61888 | 440 | 540 | 46 | 2.1 | 249 | 425 | 22.3 | 451 | 529 | 2 | 900 | 1100 |
61892 | 460 | 580 | 56 | 3 | 310 | 550 | 34.3 | 473 | 567 | 2.5 | 900 | 1100 |
61896 | 480 | 600 | 56 | 3 | 315 | 575 | 35.4 | 493 | 587 | 2.5 | 850 | 1000 |
618/500 | 500 | 620 | 56 | 3 | 320 | 600 | 37.2 | 513 | 607 | 2.5 | 800 | 950 |
618/530 | 530 | 650 | 56 | 3 | 325 | 625 | 39.8 | 543 | 637 | 2.5 | 750 | 900 |
618/560 | 560 | 680 | 56 | 3 | 330 | 650 | 41.5 | 573 | 667 | 2.5 | 700 | 850 |
618/600 | 600 | 730 | 60 | 3 | 355 | 735 | 50.9 | 613 | 717 | 2.5 | 670 | 800 |
618/630 | 630 | 780 | 69 | 4 | 420 | 890 | 71.3 | 646 | 767 | 3 | 630 | 750 |
618/670 | 670 | 820 | 69 | 4 | 435 | 965 | 75.4 | 686 | 807 | 3 | 560 | 670 |
618/710 | 710 | 870 | 74 | 4 | 480 | 1100 | 92.6 | 726 | 854 | 3 | 530 | 630 |
618/750 | 750 | 920 | 78 | 5 | 525 | 1260 | 110 | 770 | 900 | 4 | 500 | 600 |
618/800 | 800 | 980 | 82 | 5 | 530 | 1310 | 132 | 820 | 960 | 4 | 450 | 530 |
618/850 | 850 | 1030 | 82 | 5 | 559 | 1430 | 140 | 868 | 1012 | 4 | 410 | 470 |
618/900 | 900 | 1090 | 85 | 5 | 618 | 1532 | 160 | 920 | 1070 | 4 | 350 | 410 |
618/950 | 950 | 1150 | 90 | 5 | 637 | 1730 | 190 | 968 | 1132 | 4 | 290 | 350 |
