Four Row Tapered Roller Bearing With Seals 3806/266.7

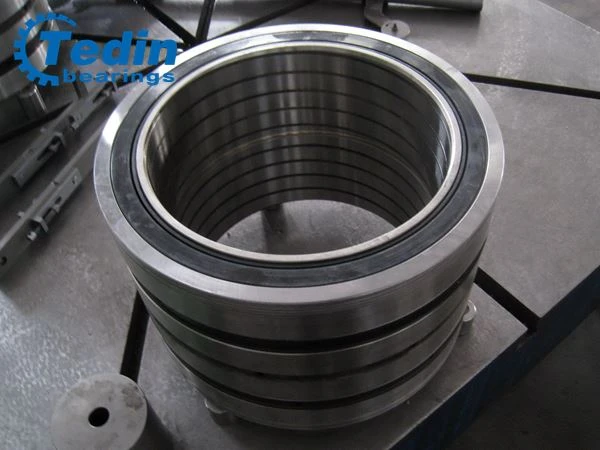

Four Row Tapered Roller Bearing with seals 3806/266.7

Four-row tapered roller bearing 3806/266.7, with seals on both sides, in precision grade P5. This kinds of four-row tapered roller bearings can withstand larger radial loads and certain axial loads but have a lower limit speed. They are mainly used for support rolls, intermediate rolls, and work rolls of rolling mills. The material selection of rolling mill bearings is generally made of high-carbon chromium bearing steel. Martensitic quenching is used under conditions of small or no impact load; under conditions of large impact load, bainite austempering is recommended. Under the conditions t large impact load and requiring greater fracture toughness, it is made of carburized bearing steel and is hardened by carburizing or carbonitriding.

Bearing Type: Sealed four-row tapered roller bearing

Type code: 3806/266.7-2RS

Applications: Rolling mills

Dimensions: 266.7/355.6* H228.6mm

Precision Grade: P5

Our products range: OD range: 80mm - 1200mm

Precision grade: ISO P5, P4

Raw Material:

high purity through-hardened steel GCr15, GCr15SiMn, GCr18Mo;

Case-hardened steel: G20Cr2Ni4A, imported TIMKEN steel, imported Ovako steel, etc.

Tapered rollers: Grade 1, with logarithmic profiling, produced by ourselves, to improve service life and operating performance.

The raceway of inner ring and out ring: Crowned profile, to improve service life and operating performance.

For case-hardened steel: effective depth of case-hardened ≥3mm；

Quality Guarantee:

We have a strict quality control flow:

Raw material inspection: high cleanliness steel, NDT test, Chemical composition,

Heat treatment: Hardness, effective case-hardened depth

Full dimensions inspection: dimensions, roundness, rotational accuracy, roller's profile, clearance etc.
