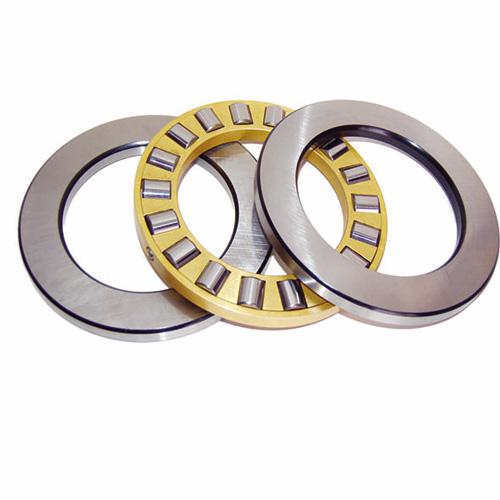

Cylindrical Roller Thrust Bearing
Cylindrical Roller Thrust bearings can withstand large axial loads in one direction, but not radial loads. They have no automatic centering ability. Cylindrical roller thrust bearings can be split into thrust cylindrical rollers and cage assemblies, shaft rings and seat rings.
The 811 series and 812 series thrust cylindrical roller bearings are composed of thrust cylindrical rollers and cage assemblies, shaft rings and seat rings. The most important parts are thrust cylindrical rollers and cage assemblies.
Cylindrical roller thrust bearings may be made of molded fiberglass reinforced polyamide 66 cage (expressed as: 1 TVPBT TVPB1), machined lightweight metal cage (expressed as LPB) or machined brass cage (expressed as: MBB MPB).
New Code | Old Code | ID | OD | Width | Weight |
(mm) | (mm) | (mm) | (kg) | ||
ZARN 50110 L TV | ZARN 50110 L TN | 50 | 110 | 103 | 3.75KG |
89310-TV | 89310-TV | 50 | 95 | 27 | 0.887KG |
89310 | - | 50 | 95 | 27 | 0.887 |
87410 | - | 50 | 110 | 27 | 1.316 |
89410 | - | 50 | 110 | 36 | 1.316 |
89410X | - | 50 | 110 | 31 | 1.125 |
81211 | 9211 | 55 | 90 | 25 | 0.568 |
81111 | 9111 | 55 | 78 | 16 | 0.218 |
ZARN 55115 L TV | ZARN 55115 L TN | 55 | 115 | 103 | 4KG |
89311-TV | 89311-TV | 55 | 105 | 30 | 1.18KG |
89311 | - | 55 | 105 | 30 | 1.18 |
87411 | - | 55 | 120 | 29 | 1.698 |
ZARN 60120 L TV | ZARN 60120 L TN | 60 | 120 | 103 | 4.85KG |
89312-TV | 89312-TV | 60 | 110 | 30 | 1.26kg |
89312 | - | 60 | 110 | 30 | 1.26 |
87412 | - | 60 | 130 | 32 | 2.26 |
89412 | - | 60 | 130 | 42 | 2.818 |
89313-TV | 89313-TV | 65 | 115 | 30 | 1.33kg |
81213` | - | 65 | 100 | 27 | 0.721 |
89313 | - | 65 | 115 | 30 | 1.33 |
89413 | - | 65 | 140 | 45 | 3.52 |
87413 | - | 65 | 140 | 34 | 2.75 |
ZARN 70130 L TV | ZARN 70130 L TN | 70 | 130 | 103 | 4.85KG |
89314-TV | 89314-TV | 70 | 125 | 34 | 1.82kg |
81241 | - | 70 | 105 | 27 | 0.768 |
89314 | - | 70 | 125 | 34 | 1.82 |
87414 | - | 70 | 150 | 36 | 3.37 |
89414 | - | 70 | 150 | 48 | 4.38 |
89315-TV | 89315-TV | 75 | 135 | 36 | 2.23kg |
89315 | - | 75 | 135 | 36 | 2.23 |
87415 | - | 75 | 160 | 38 | 4.02 |
89415 | - | 75 | 160 | 51 | 5.25 |
89316-TV | 89316-TV | 80 | 140 | 36 | 2.37KG |
89317-M | 89317-M | 80 | 150 | 39 | 3.39KG |
89316 | - | 80 | 140 | 36 | 2.37 |
87416 | - | 80 | 170 | 41 | 5.32 |
89416 | - | 80 | 170 | 54 | 6.41 |
89317 | - | 85 | 150 | 39 | 3 |
87417 | - | 85 | 180 | 42 | 5.53 |
89417 | - | 85 | 180 | 58 | 7.55 |
89318-M | 89318-M | 90 | 155 | 39 | 3.63KG |
89318 | - | 90 | 155 | 39 | 3.28 |
87418 | - | 90 | 190 | 45 | 6.65 |
89418 | - | 90 | 190 | 60 | 8.77 |
81220-TV | 81220-TV | 100 | 150 | 38 | 2.2KG |
89320-M | 89320-M | 100 | 172 | 42 | 4.56KG |
89320 | - | 100 | 170 | 42 | 4.19 |
87420 | - | 100 | 210 | 50 | 9.02 |
89420 | - | 100 | 210 | 67 | 11.9 |
81222-TV | 81222-TV | 110 | 160 | 38 | 2.29KG |
89322-M | 89322-M | 110 | 190 | 48 | 6.7kg |
89422 | 89422 | 110 | 230 | 73 | 15.6 |
89322 | - | 110 | 190 | 48 | 6.03 |
81224-TV | 81224-TV | 120 | 170 | 39 | 2.54KG |
89324-M | 89324-M | 120 | 210 | 54 | 9.44kg |
89324 | - | 120 | 210 | 54 | 8.52 |
81226-TV | 81226-TV | 130 | 190 | 45 | 3098KG |
89326 | - | 130 | 225 | 58 | 10 |
89426 | - | 130 | 270 | 85 | 24 |
81128-TV | 81128-TV | 140 | 180 | 31 | 1.9KG |
81228-M | 81228-M | 140 | 200 | 46 | 5.07KG |
89328 | - | 140 | 240 | 60 | 11.99 |
89428 | - | 140 | 280 | 85 | 27.2 |
81130-TV | 81130-TV | 150 | 190 | 31 | 2.2KG |
81230-M | 81230-M | 150 | 215 | 50 | 7.17KG |
89330 | - | 150 | 250 | 60 | 12.63 |
89430 | - | 150 | 300 | 90 | 32.1 |
81132-TV | 81132-TV | 160 | 200 | 31 | 2.12KG |
81232-M | 81232-M | 160 | 225 | 51 | 7.6KG |
81332 | - | 160 | 225 | 51 | 6.203 |
81134-TV | 81134-TV | 170 | 215 | 34 | 2.41KG |
81234-M | 81234-M | 170 | 240 | 55 | 9.3KG |
89434 | - | 170 | 340 | 103 | 47.2 |
81136-M | 81136-M | 180 | 225 | 34 | 3.3KG |
81236-M | 81236-M | 180 | 250 | 56 | 9.9KG |
89436 | - | 180 | 360 | 109 | 54.8 |
81238-M | 81238-M | 190 | 270 | 62 | 12.8KG |
89438 | - | 190 | 380 | 115 | 65.7 |
81140-M | 81140-M | 200 | 250 | 37 | 4.95KG |
81240-M | 81240-M | 200 | 280 | 62 | 14.2KG |
81244-M | 81244-M | 200 | 300 | 63 | 15.3KG |
91240 | - | 200 | 280 | 62 | - |
89440 | - | 200 | 400 | 122 | 74.8 |
81144-M | 81144-M | 220 | 270 | 37 | 5.22KG |
81740 | 9840 | 220 | 320 | 75 | 28 |
89444 | - | 220 | 420 | 122 | 82 |
81148-M | 81148-M | 240 | 300 | 45 | 8.45KG |
81248-M | 81248-M | 240 | 340 | 78 | 26.2KG |
81152-M | 81152-M | 260 | 320 | 45 | 9.08KG |
81252-M | 81252-M | 260 | 360 | 79 | 28.6KG |
89452 | - | 260 | 480 | 132 | 114 |
81156-M | 81156-M | 280 | 350 | 53 | 12.6KG |
81256-M | 81256-M | 280 | 380 | 80 | 31KG |
89456 | - | 280 | 520 | 145 | 142 |
81160-M | 81160-M | 300 | 380 | 62 | 19.4KG |
81260-M | 81260-M | 300 | 420 | 95 | 48.25KG |
81164-M | 81164-M | 320 | 400 | 63 | 20.7KG |
812/500 | 92/500 | 500 | 670 | 135 | 153 |
811/530 | 91/530 | 530 | 640 | 85 | 57.6 |
872/530 | 75492/530 | 530 | 710 | 82 | 96.6 |
812/560 | 92/560 | 560 | 750 | 150 | 198 |
817/600 | 5497/600 | 600 | 860 | 125 | 264 |
872/670 | 75492/670 | 670 | 900 | 103 | 200 |
871/710 | 75491/710 | 710 | 850 | 63 | 79 |
891/800 | 90091/800 | 800 | 950 | 90 | 105 |
871/850 | 75491/850 | 850 | 1000 | 67 | 97.1 |
811/850 | 91/850 | 850 | 1000 | 120 | 177.2 |
972/900 | 75492/900 | 900 | 1180 | 125 | 386 |
872/1060 | 75492/1060 | 1060 | 1400 | 155 | 639 |
817/1180 | 97/1180 | 1180 | 1325 | 88.5 | 173 |
871/1180 | 75491/1180 | 1180 | 1400 | 100 | 311 |
872/1320 | 75492/1320 | 1320 | 1700 | 175 | 105 |
