TDO Double Row Tapered Roller Bearings

For Double Row Taper Roller bearings, Tedin provides both back-to-back arrangement (using double row outer rings) and face-to-face arrangement (using double row inner rings). These are adjusted to fix the clearance values of each type. Only parts with identical manufacturing numbers can be used and they must be assembled according to their code numbers.

The performance of TDO type tapered roller bearing is the same as two single-two tapered roller bearings in back-to-back mounted. Type TDI bearing is mainly used in roll necks with medium loads. This type of bearings has a cup spacer, and the clearance is adjustable.

Design attribute:

1. Support heavy radial loads, axial loads in both directions.

2. Composed of a double cup, two cones, and with or without the spacer.

3. Spacers are available with or without lubricant grooves and holes.

4. Easy installation, with mounting holes on both inner and outer rings.

5. Can be used either as locating or non-locating bearings.

Applications

Heavy-duty gear drives

Various industrial configuration

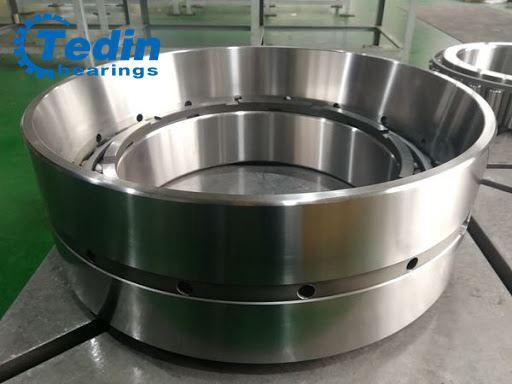

Bearing Type: TDO double row tapered roller bearing

Bearing Code: 06.CT33808/P5, HM266446/10CD/47XA/P5

Structure: Double cup, 2 cones, 1 retainer ring, double row roller, 2 pressed cages

Precision Grade: P5

Inner Diameter: 381 mm;

Outer Diameter: 546.1mm

Height: 222.25mm;

Weight: 159 kg

Rating Load: Cr=3140kN, Cor=7630kN

Material: High Carbon Chrome Steel GCr15SiMn
