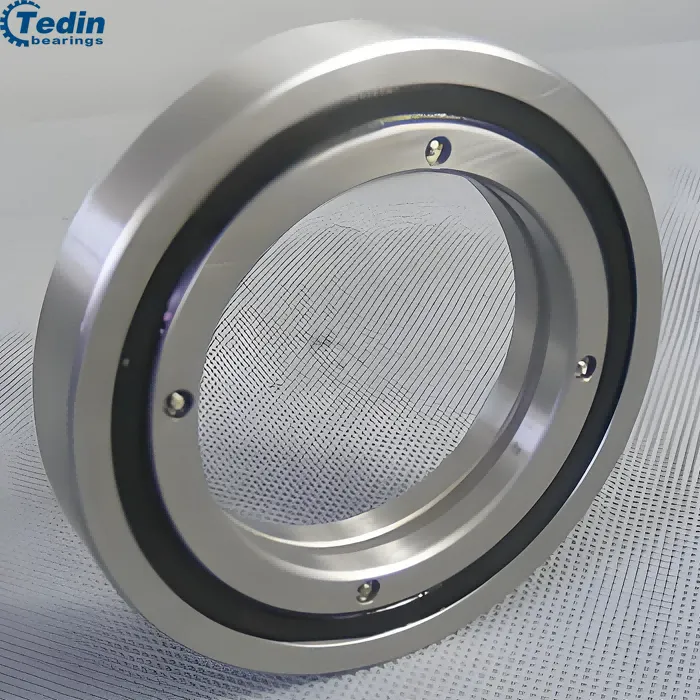

RE5013 Crossed Roller Bearing
Distinct Advantages of the RE5013
- Stable precision in a compact form – ideal for medium-size platforms with limited installation depth.
- Enhanced moment rigidity for its size, reducing deformation under load.
- Smooth, predictable torque from its orthogonal roller layout.
- Lightweight structure suited for fast-response rotary mechanisms.
- Optional low-dust and corrosion-resistant versions for cleanroom or harsh environments.
Technical Parameters – RE5013
| Bore Diameter (d) | 50 mm |
| Outer Diameter (D) | 80 mm |
| Roller Pitch Diameter (Dpw) | 64 mm |
| Width (B) | 13 mm |
| Chamfer (rmin) | 0.6 |
| Shoulder Size (ds) | 57.4 |
| Shoulder Size (Dh) | 72 |
| Basic Load Rating (Radial) Cr | 16.7 kN |
| Basic Load Rating (Radial) Cor | 20.9 kN |
| Precision Grades | P5 / P4 / P2 |
| Weight | 0.27 kg |
Check More Type of RE Series Crossed Roller Bearing
RE5013 Crossed Roller Bearing – FAQ
Can the RE5013 be customized for special projects?
Yes. Options include special radial clearance, precision grades, cage materials, seals, and corrosion-resistant finishes.
Does the RE5013 handle shock or vibration well?
Its crossed-roller structure provides strong rigidity, but using proper mounting surfaces and preload improves vibration resistance.
What is the service life of the RE5013?
Lifespan varies by load and environment, but precision setups typically achieve long service life with minimal wear.
Is the RE5013 a good replacement option for other brands?
Yes. It is dimensionally compatible with many industry-standard crossed roller bearings in the 50×80×13 mm size range
