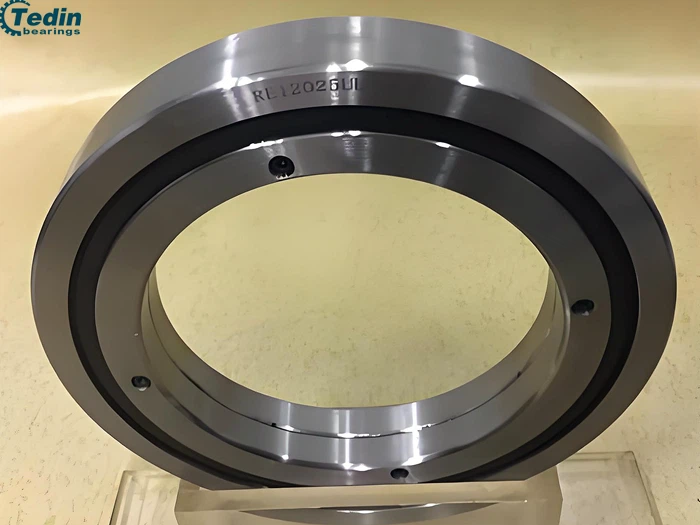

RE12025 Crossed Roller Bearing

RE12025 Crossed Roller Bearing
Details:
RE12025 crossed roller bearing for robotics, automated transfer systems, and rotary positioning equipment, with precision support for demanding mechanical assemblies.
Send Inquiry
Download
Description
Technical Parameters

Rotary Support for Precision Equipment



The RE12025 serves as a rotary support component for precision equipment where controlled movement and accurate component positioning are part of the mechanical design. Its crossed roller arrangement accommodates the interaction between rotating and stationary components within the assembly, making it suitable for positioning mechanisms, rotary units, and other precision machinery.

RE12025 Crossed Roller Bearing - Tedin bearing

Mechanical Integration

The RE12025 can be incorporated into assemblies where the bearing position needs to be coordinated with the surrounding mechanical structure. Mounting dimensions, contact surfaces, fastening conditions, and component tolerances should be reviewed during system design to establish a suitable installation arrangement. Careful attention to these details helps reduce installation issues and provides a consistent basis for subsequent equipment operation.

Technical Parameters

Inner Diameter (d) 120 mm
Outer Diameter (D) 180 mm
Roller Pitch Diameter (Dpw) 152 mm
Width (B) 25 mm
Chamfer (rmin) 1.5
Shoulder Size (ds) 133
Shoulder Size (Dh) 164
Basic  Load Rating (Radial) Cr 66.9 kN
Basic  Load Rating (Radial) Cor 100 kN
weight 2.62 kg
Accuracy Grade P5 / P4

Check More Type of RE Series Crossed Roller Bearing

Application Areas



product-505-379

Robotic Automation

Supports rotary mechanisms in robotic systems where controlled movement and reliable positioning are required.

product-694-521

Automated Transfer Systems

Suitable for rotary units used in automated transfer equipment for component handling and positioning.

product-564-423

Rotary Tables

Provides rotary support for positioning tables used in automated machining, inspection, and assembly processes.

RE12025 Crossed Roller Bearing - Tedin bearing
Production Capability

RE12025 crossed roller bearings are produced through controlled machining, assembly, and inspection procedures. Production monitoring at key stages helps maintain consistent bearing quality and supports dependable use in precision rotary equipment.

RE12025 Selection & Application Guide




Is RE12025 suitable for precision rotary equipment?

+

-

Yes. RE12025 is suitable for rotary mechanisms where controlled movement, accurate positioning, and stable bearing support are required. Final selection should be based on the equipment's load, speed, and mounting conditions.

What should be considered when installing RE12025?

+

-

The shaft or housing, mounting surfaces, alignment, and fastening conditions should be checked before installation. Proper dimensional matching helps maintain smooth bearing operation.

Does RE12025 need a run-in procedure?

+

-

A gradual low-speed run-in can be useful after installation, particularly when fresh lubricant has been applied. It allows the bearing to reach a stable operating condition before normal running conditions are introduced.

How does excessive loading affect RE12025?

+

-

Operating beyond the bearing's appropriate load range can increase friction, running torque, and contact stress, which may shorten service life. The actual load conditions should be considered when selecting the bearing.

Can RE12025 be used in customized machinery?

+

-

Yes. RE12025 can be incorporated into customized rotary mechanisms when its dimensions and operating requirements match the equipment. Mounting details and surrounding components should be reviewed during the design stage.
