718 Series Angular Contact Ball Bearings
718 Series Angular Contact Ball Bearings1. 718 series angular contact ball bearings;
2. paired assembled bearings for spindles;
3. Cage Material: Bakelite/nylon/ brass;
4. Contact Angle: 15° or 25°;
5. Precision bearings for machine tools;

718 series Angular Contact Ball Bearings

Structural features: TEDIN precision bearing series based on ISO standard. Rings’ material adopts high purity (electroslag remelting) bearing steel, with special heat treatment process, cold treatment technology and material modification technology, the fatigue life of the series bearings is greatly improved.

Contact Angle: 15° and 25°; Paired assembled bearings is capable to bearing both axial and radial load or combined load.

Cage: The outer ring-guided phenolic resin cloth rubber cage and the roller-guided nylon cage can be selected according to different uses.

to select the Bakelite cage at 500000 ≤ DmN ≤ 1000000 under medium and high speed working conditions;

Nylon cage or Bakelite cage can be used in medium and low speed;

Application: This kind of bearing has a wide range of application. It is mainly used for high speed axial positioning and radial positioning, high precision rotation and other working conditions. For example: CNC lathe spindle, all kinds of grinding machine workpiece shaft, grinding wheel spindle, photovoltaic slicer, vacuum pump, fan, precision transmission machinery and so on.

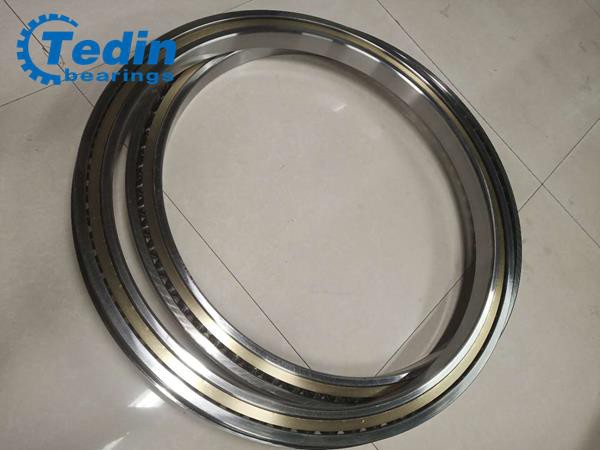

718 series Angular Contact Ball Bearings.jpg718 series Angular Contact Ball Bearings.jpg


Angular Contact Ball Bearing - 718 series





α= 15°

α= 25°


Code

d

D

B

Rating Load

Speed

Rating Load

Speed

Cage Material





Cr Cor

Grease Oil

Cr Cor

Grease Oil


71800C

10

19

5

1.8 1.1

74000 119000

1.7 1.1

69000 109000

Bakelite/nylon

71801C

12

21

5

2.0 1.4

69000 109000

1.9 1.3

62000 94000

Bakelite/nylon

71802C

15

24

5

2.2 1.8

59000 89000

2.1 1.7

53000 79000

Bakelite/nylon

71803C

17

26

5

2.3 1.9

52000 79000

2.1 1.8

49000 74000

Bakelite/nylon

71804C

20

32

7

3.9 3.4

44000 66000

3.7 3.2

39000 59000

Bakelite/nylon

71805C

25

37

7

4.2 4.1

37000 55000

3.9 3.9

33000 49000

Bakelite/nylon

71806C

30

42

7

4.4 4.8

31000 47000

4.1 4.5

27000 42000

Bakelite/nylon

71807C

35

47

7

4.6 5.5

25000 39000

4.3 5.2

23000 37000

Bakelite/nylon

71808C

40

52

7

4.8 6.2

23000 37000

4.5 5.8

19000 33000

Bakelite/nylon

71809C

45

58

7

4.9 6.7

19000 33000

4.6 6.3

17000 29000

Bakelite/nylon

71810C

50

65

7

7.4 10.0

17000 29000

6.9 9.5

15000 25000

Bakelite/nylon

71811C

55

72

9

10.2 13.8

15000 25000

9.6 13.1

14000 23000

Bakelite/nylon

71812C

60

78

10

13.4 18.0

14000 23000

12.6 17.0

13000 21000

Bakelite/nylon

71813C

65

85

10

13.4 18.8

13000 21000

12.6 17.8

12000 19000

Bakelite/nylon

71814C

70

90

10

13.8 20.3

12000 19000

13.0 19.1

11000 18000

Bakelite/nylon

71815C

75

95

10

14.2 21.7

11000 18000

13.3 20.5

10000 17000

Bakelite/nylon

71816C

80

100

10

14.5 23.1

10000 17000

13.6 21.8

85000 15000

Bakelite/nylon

71817C

85

110

13

21.5 32.2

9000 16000

20.2 30.5

8000 14000

Bakelite/nylon

71818C

90

115

13

21.7 33.5

8500 15000

20.4 31.6

7500 13000

Bakelite/nylon

71819C

95

120

13

21.9 34.7

8000 14000

20.6 32.8

7500 13000

Bakelite/nylon

71820C

100

125

13

22.5 37.0

7500 13000

21.2 34.9

7000 12000

Bakelite/nylon

71821C

105

130

13

22.7 38.3

7500 13000

21.3 36.1

7000 12000

Bakelite/nylon

71822C

110

140

16

31.8 51.6

7000 12000

29.9 48.7

6500 11000

Bakelite/nylon

71824C

120

150

16

33.1 56.9

60000 10000

31.3 53.7

5700 9000

Bakelite/nylon

71826C

130

165

18

38.7 67.6

5700 9000

36.3 63.8

5000 8000

Bakelite/nylon

71828C

140

175

18

44.8 79.2

5000 8000

42.0 74.7

4600 7500

Bakelite/nylon

71830C

150

190

20

51.2 92.0

4600 7500

48.0 86.8

4000 6500

Bakelite/nylon

71832C

160

200

20

52.4 97.7

4000 6500

49.2 92.2

3800 6000

Bakelite/nylon

71834C

170

215

22

66.5 123.4

3800 6000

62.4 116.5

3300 5300

Bakelite/nylon

71836C

180

225

22





Bakelite

71838C

190

240

24





Bakelite

71840C

200

250

24





Bakelite

71844C

220

270

24





Bakelite

71848C

240

300

28





Bakelite

71852C

260

320

28





Bakelite

71856C

280

350

33





Bakelite

71860C

300

380

38





Brass

71864C

320

400

38





Brass

71868C

340

420

38





Brass

71872C

360

440

38





Brass

71876C

380

480

46





Brass

71880C

400

500

46





Brass

71884C

420

520

46





Brass

71888C

440

540

46





Brass

71892C

460

580

56





Brass

71896C

480

600

56





Brass
